Description

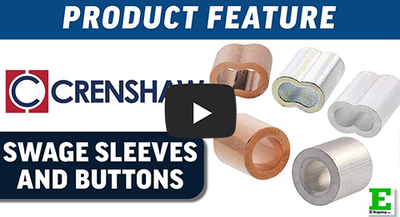

Zinc Copper Hourglass Sleeves
Dimensions are in inches unless otherwise noted.
Cable & Sleeve Size | A | L | Weight (lbs) | After Swage Dimension | Crimps Per Sleeve | Swager Cavity Size |
---|---|---|---|---|---|---|
3/32 | 0.135 | 0.37 | 0.01 | 0.265 | 2 | 3/32 |
1/8 | 0.165 | 0.492 | 0.02 | 0.350 | 3 | 1/8 |
3/16 | 0.220 | 0.672 | 0.05 | 0.475 | 4 | 3/16 |
1/4 | 0.285 | 0.809 | 0.08 | 0.580 | 4 | 1/4 |
5/16 | 0.360 | 1.02 | 0.12 | 0.735 | 5 | 5/16 |
3/8 | 0.420 | 1.113 | 0.16 | 0.802 | 5 | 3/8 |
Reviews
Customer Questions & Answers
-
Is there a button type swage fitting for 3/16 inch cable to use as a non pull thru cable type termination. I would then put a extra long threaded stud on the other end to pull the cable tight
end-stop-fittings
The first 2 here should do the job for you. But you can also use the Revo system of tensioners if you don't want to use the extra long stud.
