What size holes do I need to drill for Revo Lag Components?

For Revo Lag components being installed in soft woods such as pressure treated pine and cedar, you will need to drill a ½ inch diameter hole that is drilled to a depth of 1.5”. For hard woods such as oak and Ipe, you will need to drill a 9/16” diameter hole to a depth of 1.5”.

Shop the Revo DIY Cable Railing System w/ Fast Shipping

Q: What size holes do I need to drill for Revo Thru Post Components in wood posts?

When installing the Revo System thru post components into wood posts, you will need to drill a 3/8” diameter hole.

Q: Can I use Revo Lag Tensioners and End Stops for my stair runs?

For stair runs you can use Revo Lag End Stops at one of your termination post

Q: Do I need to drill level or angled holes for the wood termination posts on my stair runs when installing Revo Thru Post Components?

When installing Revo Thru Post Tensioners and End Stops for your stair runs, you will need to drill level holes in your termination posts, and use a transition wood post protector which will aid your cable as it bends to run up or down your stairs.

Cable Railing › HAAS REVO

HAAS REVO Cable Railing System Stair View - Made in USA

HAAS Revo cable rail systems are great for everything from home projects to commercial buildings, indoor & outdoor railings, and stairways. Minimalist in style, the Revo system is simple and has a clean design with most configurations having no visible tension or swaged (crimped) fittings. The simplicity of the Revo system also makes it very easy to understand and install. Made in our own USA based headquarters of marine-grade type 316 stainless steel, these fittings will resist corrosion in harsh environments, even on the beachfront if properly maintained. Paired with Grand Strand 1x19 stainless cable, youll be able to create an unobstructed cable railing project that will open your view. Check out our how-to videos, detailed installation instructions, maintenance guide, and project gallery of our HAAS Revo Cable Railing Systems.

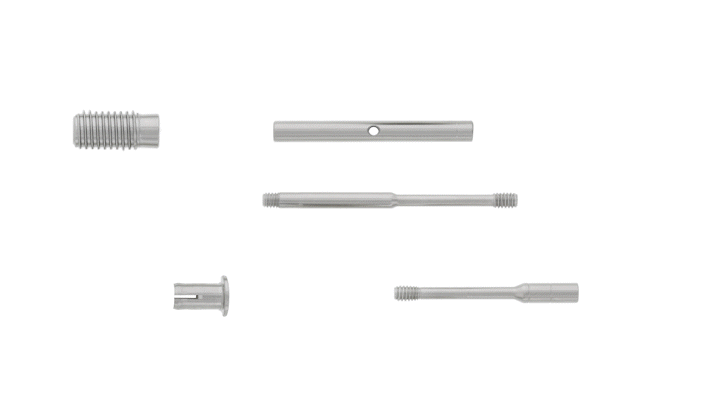

REVO System Components

Tensioners

End Stops

Post Protectors

Cable

Tools & Accessories

Crenshaw 25" Swager

Cable Cutters

Full List of Tools

Replacement Parts

REVO System FAQ

Yes, you will need to offset the holes in your corner posts by 3/16”, which will allow your components to pass under or over one another.

When installing the REVO System thru post components into wood posts, you will need to drill a 3/8” diameter hole.

For REVO Lag components being installed in soft woods such as pressure treated pine and cedar, you will need to drill a ½" diameter hole that is drilled to a depth of 1.5”. For hard woods such as oak and Ipe, you will need to drill a 9/16” diameter hole to a depth of 1.5”.

All of the post protectors that we carry at HAAS Stainless will require a 3/8” diameter hole.

For metal posts, you will need to use either 1/8” or 3/16” REVO Thru Post Tensioners and End Stops. You can find our instructional videos on installing REVO components in metal posts here:

If you do not have access to the backside of a termination post on your deck, you would want to use a lag style component, such as a REVO Lag Tensioner or Lag End Stop..

For stair runs you can use REVO Lag End Stops at one of your termination post.

When installing REVO Thru Post Tensioners and End Stops for your stair runs, you will need to drill level holes in your termination posts, and use a transition wood post protector which will aid your cable as it bends to run up or down your stairs.

HAAS REVO Cable Rail Features

Material:

Marine Grade Type 316 Stainless Steel to resist the harshest salt-air, outdoor environments.

Axis_Cable_Railing_Stainless_Steel_Machining

Origin:

Made in house in the USA at our Louisiana headquarters.

Sizes:

Choose between:
1/8”
for a modern, sleek look or and
3/16”
which offer an industrial look. Both are great for residential and commercial applications!

Easy Installation:

Less Measuring, Faster Assembly

Handy marks on the swage fittings, the HAAS Marking template, and the drill bits allow for quick system assembly with minimal measurements all supported by our easy to understand instructional guide.

Lead Time:

HAAS REVO SHIPS FAST

In-Stock orders ship the same day if you order before 2 pm central time. We run our machines 22 hours a day to keep a huge inventory of components to help get your cable railing system installed as quickly as possible.

Unequaled Minimalism:

Most projects can be completed with all fittings hidden inside the post. The short swage area allows the studs to hide completely inside the post with only the sleek nut cap visible on the back side, and a wood post protector visible from the front. When exposed fittings are necessary, they are sleek and minimal allowing for an unobstructed view.

Strength:

BUILT TO LAST

1/8" swage fittings have a 1200 lbs breaking load. 3/16" swage fittings have an 1800 lbs breaking load. All size Lag fittings have a breaking load of 900 lbs when properly installed in #2 pine.

Tools Needed:

MINIMAL TOOLS

You’ll need a Crenshaw swager, and off-the-shelf common tools. All tools needed for installation are available for purchase on our site, or you may already have them.

Get answers directly from Tyler, our resident cable railing expert. On this Cable Railing 101 page, you’ll find answers to your most common general cable railing, post, and handrail questions. Continue on to our Instructional video library for detailed step-by-step instructions to the REVO and AXIS system by HAAS Stainless.

Visit Cable Railing 101 Page

Maintaining_Cable_Railing_Systems_in_Saltwater_Environments

It's important to understand that stainless steel can be susceptible to rust and corrosion if left untreated in a high-salinity environment. Check out our HAAS Cable Railing Maintenance and Care Guide page to learn more.

Cable Railing Maintenance and Care Guide

See what our HAAS REVO Customers are saying!

View more ratings here!

HAAS REVO Instructional Videos

Looking to elevate your knowledge about cable railing?

Dive into our instructional video page, where a treasure trove of invaluable resources awaits you. Whether you're seeking intricate technical details or step-by-step how-to guides, we've got you covered. Learn more on cable railing installation and maintenance at your own pace, with our comprehensive video library. From beginners to seasoned pros, there's something for everyone.
