Description

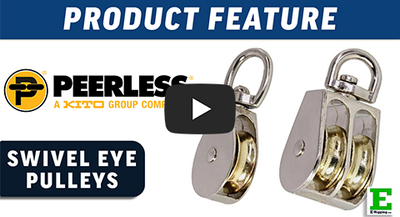

Swivel Eye Blocks
Dimensions are in inches unless otherwise noted.
Cable Size | Working Load Limit (lbs) | A | B | C | D | E | F | G | H | Weight (lbs) |
---|---|---|---|---|---|---|---|---|---|---|
3/16 | 525 | 1 | 1.5 | 0.4375 | 1.5 | 0.625 | 3.8125 | 2.4375 | 1.625 | 0.5 |
3/16 | 600 | 1.5 | 2 | 0.4375 | 1.5 | 0.625 | 4.25 | 2.9375 | 2.125 | 0.7 |
1/4 | 685 | 2 | 2.5 | 0.4375 | 1.5 | 0.875 | 5 | 3.4375 | 2.625 | 1.0 |
1/4 | 800 | 2.5 | 3 | 0.4375 | 1.5 | 0.875 | 5.625 | 4.0625 | 3.125 | 1.4 |
5/16 | 800 | 2.5 | 3 | 0.4375 | 1.5 | 0.875 | 5.625 | 4.0625 | 3.125 | 1.4 |
5/16 | 1550 | 3 | 3.5 | 0.625 | 2.0625 | 1.1875 | 7.625 | 5.375 | 3.75 | 3.1 |
3/8 | 1550 | 3 | 3.5 | 0.625 | 2.0625 | 1.1875 | 7.625 | 5.375 | 3.75 | 3.1 |
