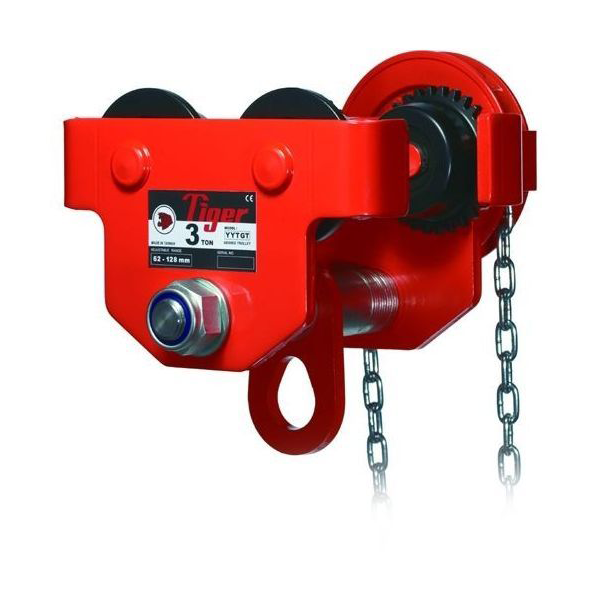

Tiger Lifting Single-Bar Geared Hoist Beam Trolleys
1 ton tiger lifting tg single bar geared hoist beam trolley specification diagram
2 ton tiger lifting tg single bar geared hoist beam trolley specification diagram
3 ton tiger lifting tg single bar geared hoist beam trolley specification diagram
5 ton tiger lifting tg single bar geared hoist beam trolley specification diagram
Tiger Lifting Single-Bar Geared Hoist Beam Trolleys
1 ton tiger lifting tg single bar geared hoist beam trolley specification diagram
2 ton tiger lifting tg single bar geared hoist beam trolley specification diagram
3 ton tiger lifting tg single bar geared hoist beam trolley specification diagram
5 ton tiger lifting tg single bar geared hoist beam trolley specification diagram

Tiger Lifting Single-Bar Geared Hoist Beam Trolleys

SKU: 94920004
Size: 1 Ton
Price:
$282.98
Stock:
Only 3 units left

In Stock Orders Ships Same Day!!!

You can add more than the in-stock qty to your cart, and we will ship your complete order once all the stock arrives. In Stock Orders the ship same day if placed before 2PM CT. All items in your cart must be listed as In Stock. Place separate orders on in-stock and back ordered items if you want items to ship the same day. Applies to UPS shipping methods only, LTL Freight may go out the same day if carrier pick-up schedule permits.

Tiger Lifting Single-Bar Geared Hoist Beam Trolleys

Register to receive a notification when this item comes back in stock.

Notify me when available

Quick Specs (Click to see full Specs)

Return Policy: Must be unused in original un-damaged packaging, see our return policy for more info.
Material: Painted Steel

Ultimate Tensile Strength (UTS):

Working Load Limit (WLL):

Minimum Breaking Load (MBL):

Design Factor: 5 to 1

Size:

Length:

Weight:

Standard Reel Size (Flange Diameter x Height):

Shipping Note:

Imported Formed and Welded Machining Powder Coated

Instructional Videos

Description

Tiger Lifting Single-Bar Geared Hoist Beam Trolleys

Dimensions are in inches unless otherwise noted.

Product Code Type Capacity (tons) Track Width (D) A B C E F G Min. curve ratio (ft)
TGS-0100 Geared 1 2.44-5.03 8.4 6.7 4.4 4.2 0.8 2.8 3.3
TGS-0200 Geared 2 3.46-6.06 9.3 7.6 5.4 5.2 1 3.1 4.3
TGS-0300 Geared 3 3.42-6.02 10.3 7.8 0.57 5.9 1 3.8 4.9
TGS-0500 Geared 5 4.17-7.63 12.7 8.3 6.7 6.9 1.2 4.6 4.9

This geared beam trolley is a versatile and premium solution for lifting from overhead I-beams.

Tiger-Lifting-Single-Bar-Geared-Hoist-Beam-Trolleys-main

They’re designed with anti-drop plates to ensure safety and to prevent damage to the wheels when contacting end rail stoppers.

Tiger-Lifting-Single-Bar-Geared-Hoist-Beam-Trolleys-gear

The wheels of the trolley are designed with a convex profile to eliminate potential point loading and run on sealed bearings for smoother rolling with less effort and maintenance.

Tiger-Lifting-Single-Bar-Geared-Hoist-Beam-Trolleys-gear

They can be used with manual or electric lifts.

Tiger-Lifting-Single-Bar-Geared-Hoist-Beam-Trolleys-side-view

Our customers use Tiger Lifting Single-Bar Geared Hoist Beam Trolley to perform lifts in warehouses, machine, and fabrication shops, and for general rigging projects.

They’re available in sizes ranging from 1- to 5-tons and I-beam flange widths from 2.4-to 7.6-inches.

When it comes to hoist beam trollies, Tiger Lifting Single-Bar Geared Hoist Beam Trolley is the premium choice for I-beam lifting versatility.
