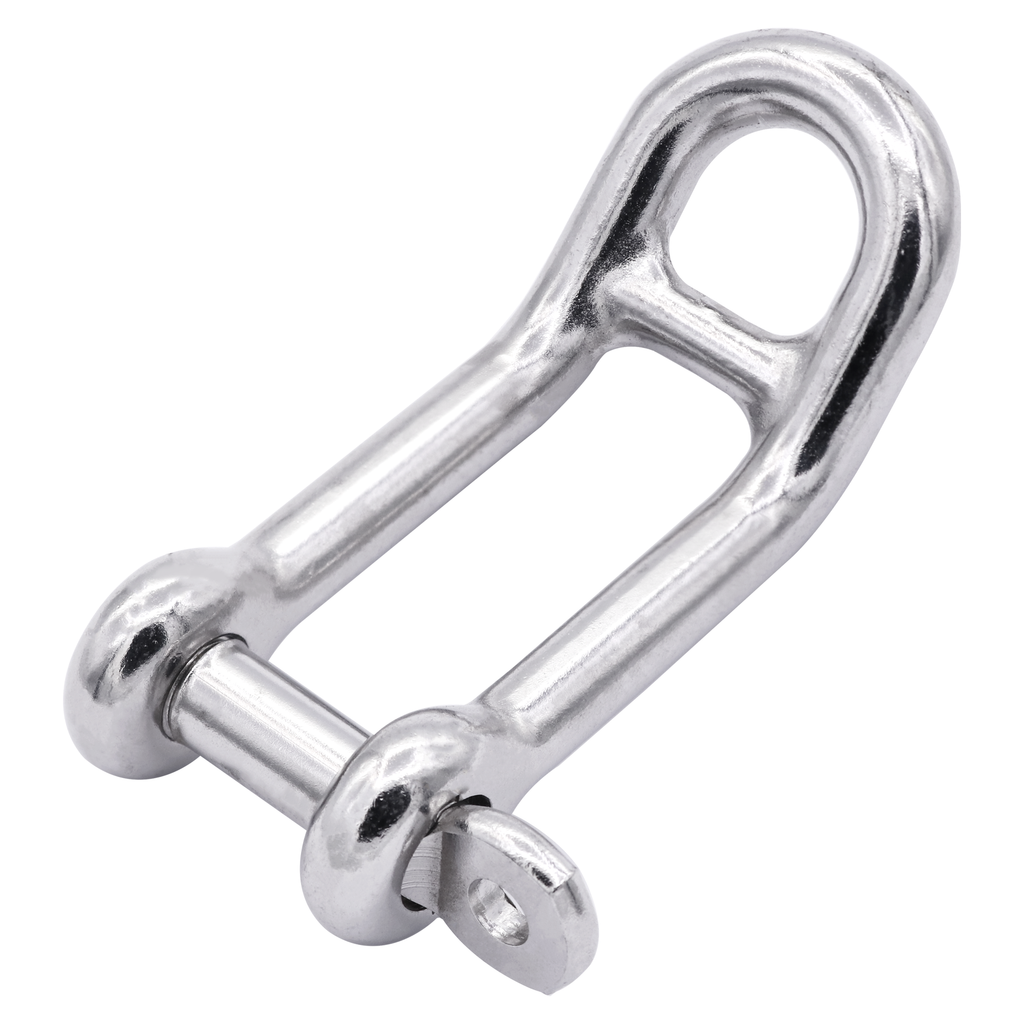

Type 316 Stainless Steel Captive Pin Headboard Shackle
Type 316 Stainless Steel Captive Pin Headboard Shackle

Type 316 Stainless Steel Captive Pin Headboard Shackle

SKU: 51601592
Size: 1/4"
Price:
$2.63
Stock:
392 In Stock

In Stock Orders Ships Same Day!!!

You can add more than the in-stock qty to your cart, and we will ship your complete order once all the stock arrives. In Stock Orders the ship same day if placed before 2PM CT. All items in your cart must be listed as In Stock. Place separate orders on in-stock and back ordered items if you want items to ship the same day. Applies to UPS shipping methods only, LTL Freight may go out the same day if carrier pick-up schedule permits.

Type 316 Stainless Steel Captive Pin Headboard Shackle

Register to receive a notification when this item comes back in stock.

Notify me when available

Quick Specs (Click to see full Specs)

Return Policy: 30-Day Returns, see our return policy for more info.
Material: Type 316 Stainless Steel

Ultimate Tensile Strength (UTS):

Working Load Limit (WLL):

Minimum Breaking Load (MBL):

Size:

Length:

Weight:

Standard Reel Size (Flange Diameter x Height):

Shipping Note:

Imported Type 316 Stainless Steel

Description

Headboard Shackle, Captive Pin (Model 1726)

Dimensions are in inches unless otherwise noted.

SizeØA (inch)B (inch)L (inch)Weight (lb)WLL. (lb)
1/4"0.280.470.440.091045
5/16"0.350.630.590.222035
3/8"0.420.790.740.422860
15/32"0.490.940.890.73575
