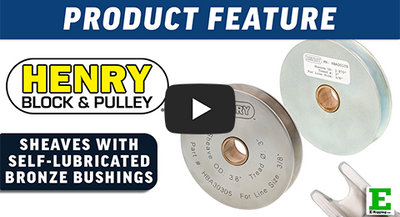

Zinc Plated Sheaves With Bushings, Imported

Name: 3/16" Cable x 1-1/2" Diameter Sheave
Brand: Block Division
SKU: 61581510
Price: 4.67 USD
Availability: InStock

Bin Location:

SKU: 61581510

Size: 3/16" x 1-1/2"

Variant

Price:

$4.67

Stock:

124 In Stock

Quantity:

Material: Zinc Plated Steel

Working Load Limit (WLL):

Minimum Breaking Load (MBL):

Size:

Length:

Weight:

Standard Reel Size (Flange Diameter x Height):

Shipping Note:

Zinc Plated Sheaves With Bushings, Imported

Dimensions are in inches unless otherwise noted.

Cable Size	A	B	C	D	E	F	O	Weight (lbs)
3/16	1	1.5	0.5	0.46875	0.4375	0.3125	0.1875	0.2
3/16	1.5	2	0.5	0.46875	0.4375	0.3125	0.1875	0.3
1/4	2	2.5	0.5	0.46875	0.4375	0.3125	0.25	0.5
1/4	2.5	3	0.5	0.46875	0.4375	0.3125	0.25	0.8
5/16	2.5	3	0.5	0.46875	0.4375	0.3125	0.3125	0.8
5/16	3	3.5	0.75	0.6875	0.625	0.46875	0.3125	1.3
3/8	3	3.5	0.75	0.6875	0.625	0.46875	0.375	1.3
3/8	3.25	4	0.75	0.6875	0.625	0.46875	0.375	1.8
3/8	4.25	5	0.75	0.6875	0.625	0.46875	0.375	2.9

If you have a question about a specific size, please mention the size in the question.
